Composite Chemical Storage Tanks are the optimal storage solution for acids, alkalis, and industrial solvents thanks to their excellent corrosion resistance, long lifespan, and flexible design. The products are manufactured directly by An Tam New Technology Joint Stock Company under the Ecoprotec brand, suitable for a wide range of modern industrial applications.

1. Overview of Composite Chemical Storage Tanks

1.1. Concept and Industrial Role

In industries that use chemicals—especially highly corrosive substances such as acids, alkalis, and organic solvents—the requirements for storage tanks are becoming increasingly demanding. The tank material must ensure durability, leak prevention, non-reactivity with stored chemicals, while also remaining lightweight, easy to transport, and long-lasting.

Composite chemical storage tanks are the ideal solution that meets all these requirements. Manufactured from fiberglass-reinforced plastic (FRP), these tanks provide superior corrosion resistance, chemical resistance, heat resistance, and outstanding durability, making them suitable for harsh industrial environments.

1.2. Outstanding Advantages of Composite Materials

Composite is a material system made from two main components: resin matrix and fiberglass reinforcement. This combination creates many outstanding properties:

• Excellent corrosion resistance: Does not oxidize like metal, rot like wood, or become brittle like ordinary plastic.
• Lightweight: 3–4 times lighter than metal tanks, making transportation and installation easier.
• Long lifespan: Stable operation for 15–25 years with minimal maintenance.
• Strong chemical resistance: Resistant to acids, alkalis, organic solvents, and seawater.

---

2. Detailed Structure of Composite Chemical Tanks

2.1. Multi-Layer Structure

A standard composite chemical tank is typically constructed with 3–5 layers, each serving a specific function:

• Inner liner layer: Directly contacts chemicals, usually made from vinyl ester resin with extremely high chemical resistance.
• Intermediate layer: Reinforced with fiberglass to provide rigidity and structural stability.
• Outer protective layer: Enhances UV resistance, impact resistance, and outdoor durability.

2.2. Integrated Accessories

Depending on design and operational requirements, tanks can be equipped with:

• Inlet/outlet flanges
• Inspection hatch
• Safety locking cover
• Composite ladder
• Liquid level gauge
• Piping system, valves, overflow pipe
• Anti-static coating (for explosive environments)

---

3. Common Types of Composite Chemical Tanks

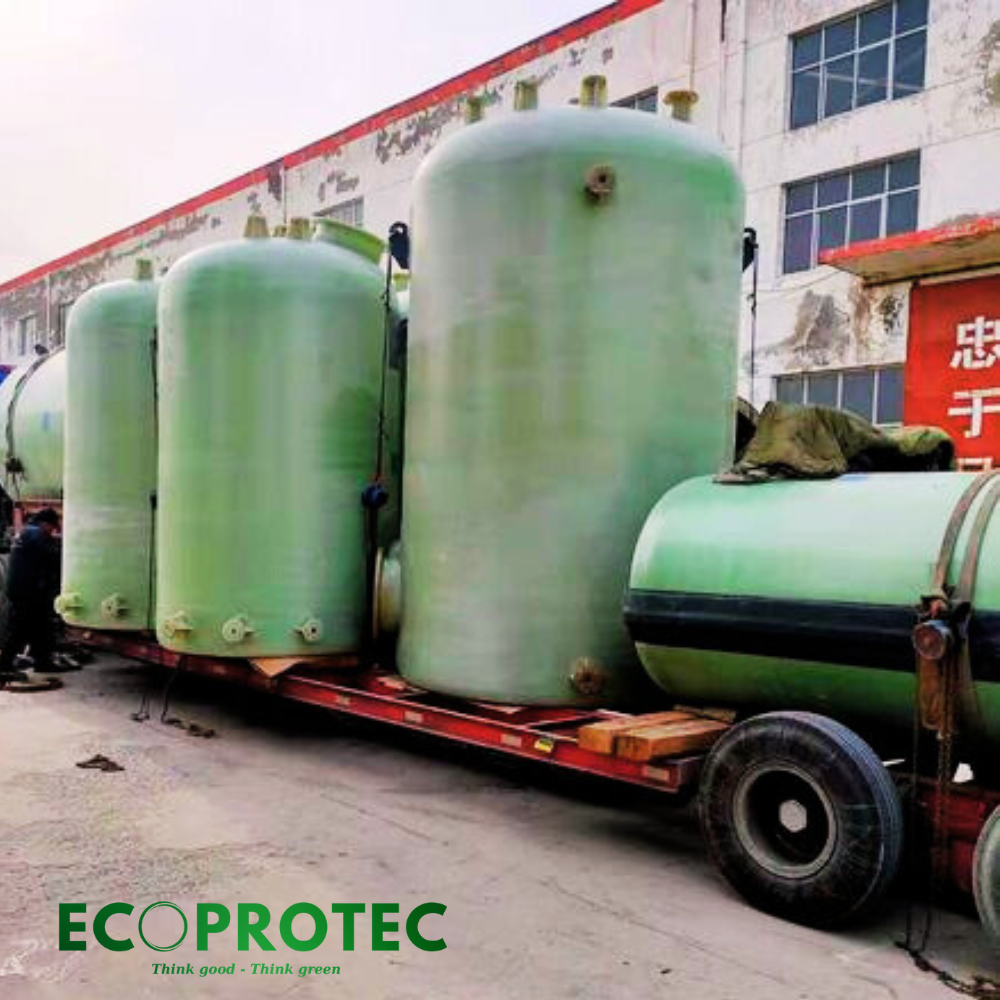

3.1. Vertical Tanks

• Vertical cylindrical design, saving floor space.
• Commonly used in factories on concrete bases or composite platforms.
• Common capacities: 1,000L – 50,000L.

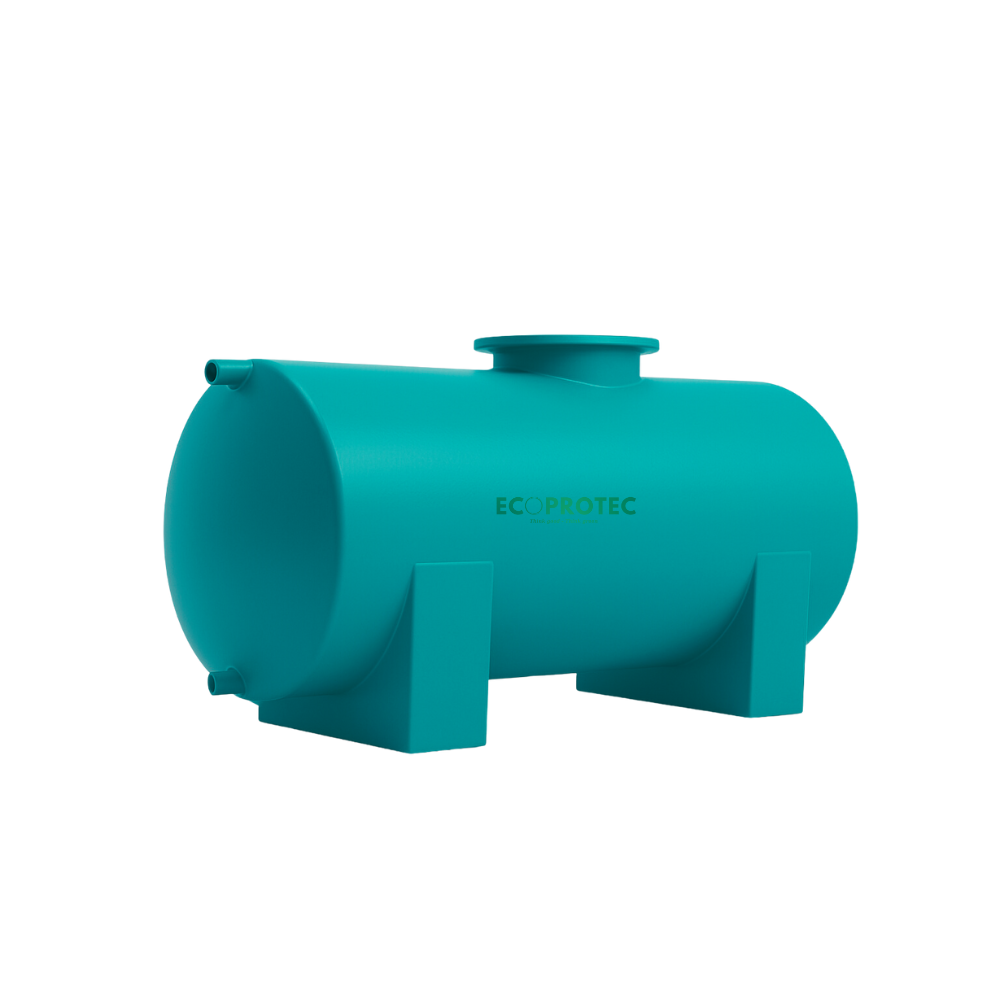

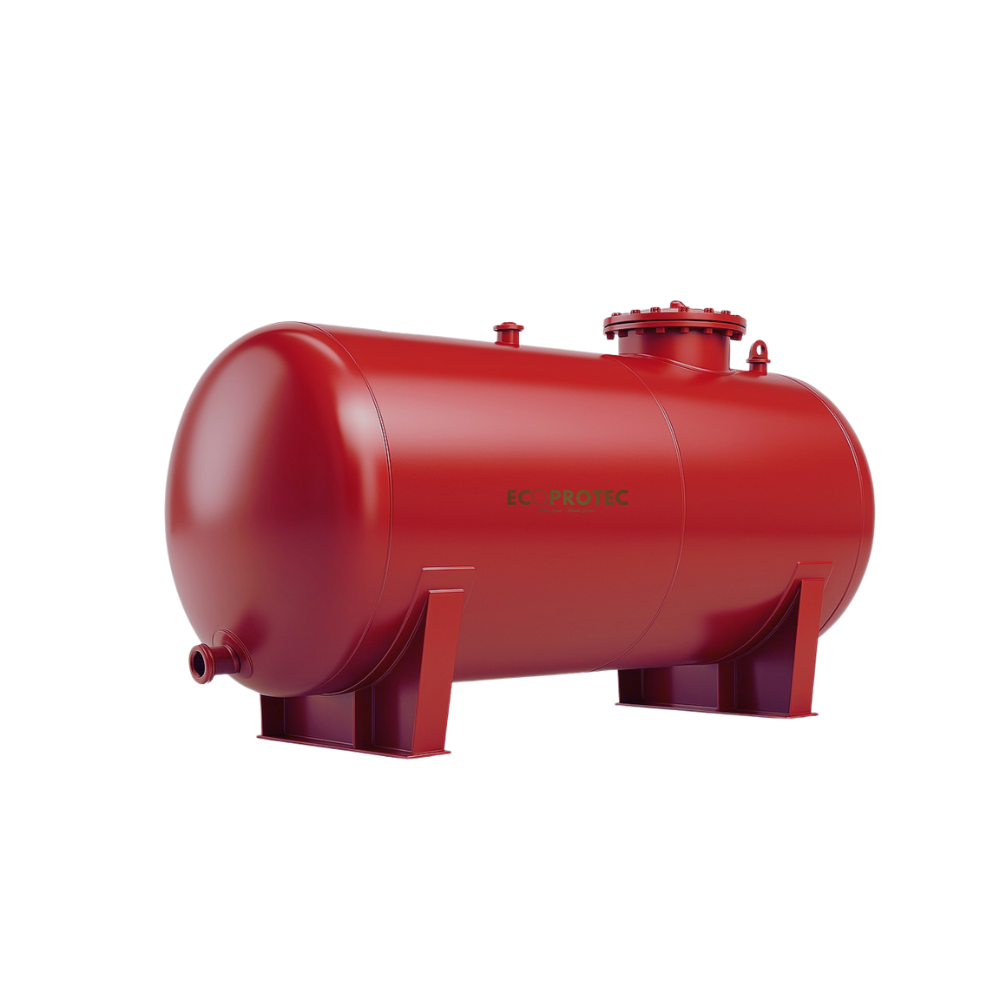

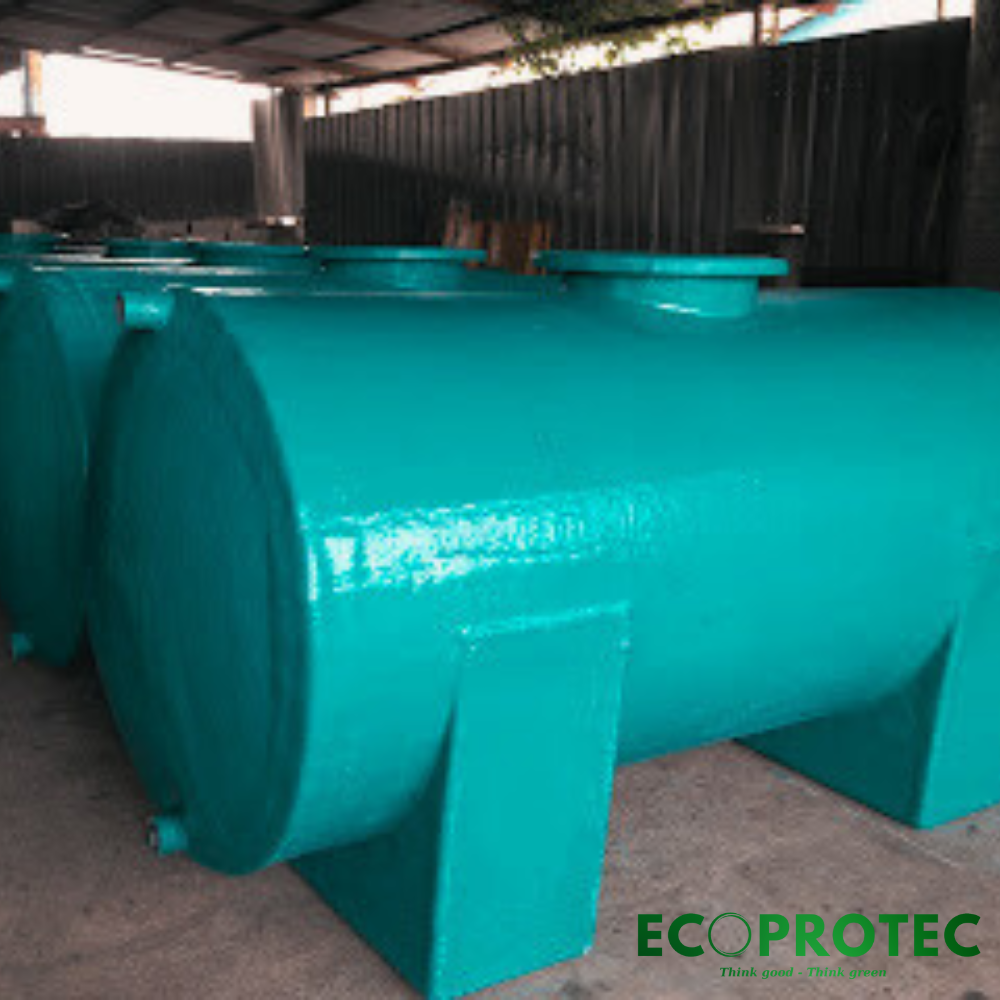

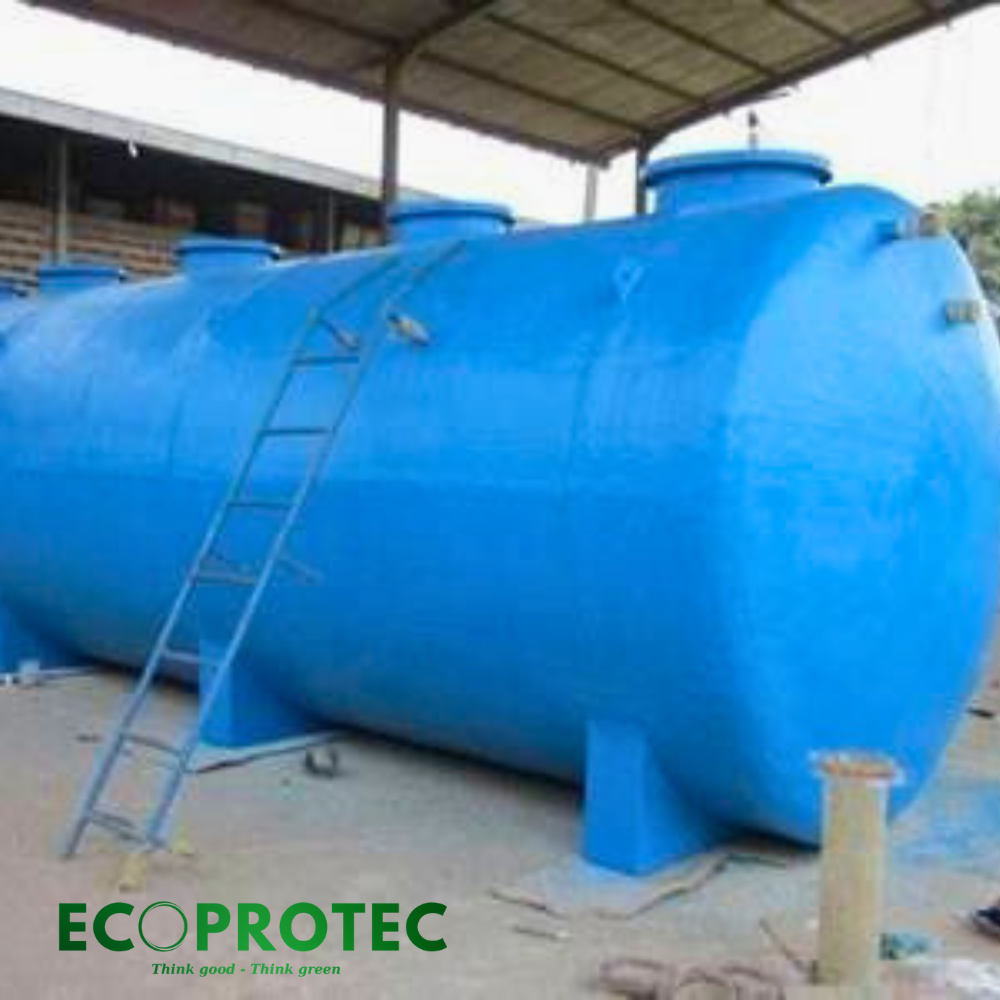

3.2. Horizontal Tanks

• Suitable for areas with height limitations.
• Can be equipped with support legs or reinforced steel frames.
• Suitable for tanker trucks and mobile chemical storage.

3.3. Underground Composite Tanks

• Used in areas with limited space or where aesthetics are important.
• Special reinforced structure capable of withstanding soil pressure.

3.4. Composite Mixing Tanks

• Integrated with mechanical agitator motors.
• Used for chemical reactions, water treatment, and mixing processes.

---

4. Technical Specifications of Composite Chemical Tanks

---

5. Practical Applications of Composite Chemical Storage Tanks

5.1. Chemical & Pharmaceutical Industry

• Storage of strong acids (H₂SO₄, HCl, HNO₃), alkalis (NaOH, KOH), and organic solvents.
• Safe operation under harsh chemical and temperature conditions.

5.2. Textile Dyeing & Wastewater Treatment Plants

• Storage of PAC, alum, bleach, chlorine, and treatment chemicals.
• Used as intermediate tanks, equalization tanks, and reaction tanks.

5.3. Electroplating, Printing, Paint & Ink Industry

• Storage of electroplating solutions, industrial inks, and mixing chemicals.

5.4. Water Supply & Domestic Water Treatment Stations

• Storage of lime water, PAC, and disinfectants.
• Ensures safety without toxic contamination or chemical reactions.

5.5. Industrial Chemical Warehouses

• Bulk storage and distribution of industrial chemicals.
• Integrated with piping systems and automatic warning systems.

---

6. Why Choose Ecoprotec Composite Chemical Tanks

6.1. Manufactured by An Tam New Technology

With more than 10 years of experience in designing and manufacturing composite tanks, An Tam has developed the Ecoprotec brand trusted by hundreds of businesses nationwide.

6.2. International Standard Quality Commitment

• High-quality materials manufactured in ISO-standard factories.
• Experienced technical team specializing in industrial chemical systems.
• Complete leakage, pressure, and thickness inspection procedures.

6.3. Custom Design & Nationwide Delivery

• Custom manufacturing according to customer technical drawings.
• Consultation from material selection to maintenance solutions.
• Nationwide transportation and on-site installation support.

---

7. Typical Customers Using Ecoprotec Composite Tanks

• 🌐 VSIP Tan Uyen Industrial Park – chemical storage systems for water treatment.
• 🏭 Beer, food processing, and textile dyeing factories in Ho Chi Minh City, Dong Nai, and Binh Duong.
• 🧪 Chemical companies in Hanoi, Hai Phong, Bac Ninh, and Hai Duong.
• 🔬 Wastewater treatment stations for residential areas, hospitals, schools, and factories.

---

8. Comparison Between Composite Chemical Tanks and Other Materials

✅ Conclusion: Composite is the superior material for modern industrial chemical storage applications.

---

9. Contact Information

For composite chemical storage tank quotations, technical drawings, or custom manufacturing requests, please contact:

AN TAM NEW TECHNOLOGY JOINT STOCK COMPANY
📞 Hotline/Zalo: 0834 473 166
📧 Email: sales@atnewtech.vn
🌐 Website: atcomposite.com

Composite chemical storage tanks are not only a product but also a safe – durable – flexible solution for businesses requiring reliable chemical storage and processing systems. With premium quality, competitive pricing, and dedicated technical support from the Ecoprotec – An Tam brand, customers can be fully confident in long-term operational efficiency.

🔔 Contact us today for technical consultation and the best quotation!
